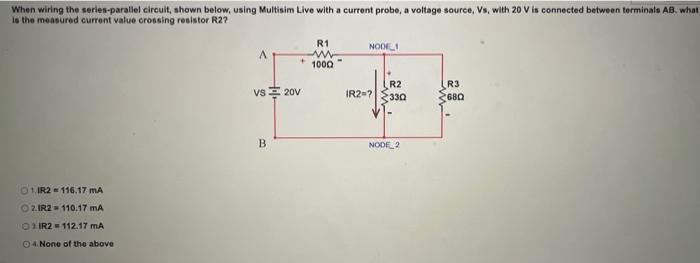

When wiring the series-parallel circuit, shown below, using Multisim Live with a current probe, a voltage source, Vs, with 20 V is connected between terminals AB. whi is the measured current value erossing resistor R2? \( 1 R 2=116.17 \mathrm{~mA} \) \( 2.182=110.17 \mathrm{~mA} \) \( I R 2=112.17 \mathrm{~mA} \) None of the above When wiring the series-parallel notwork, shown below, using Multisim Llve with voltage-current probes, a voltage source, Vs, with \( 10 \mathrm{~V} \) is connected between ferminals AB. What is the total measured resistance value between terminals \( A B \) ? 1. \( R A B=22.8956 \Omega \) 2. \( R A B=27.7845 \Omega \) 3. \( R A B=27.4514 \Omega \) 4. None of the above Determine the four-band color code for the resistor value \( 3.49 \mathrm{k} \Omega \pm 10 \% \). 1.1st band is Orange, 2nd band is Green, 3rd band is Red, 4th band is Silver. 2. None of the above 3.1st band is Orange, 2nd band is Yellow, 3rd band is Red, 4th band is Silver. 4.1st band is Orange, 2nd band is Yellow, 3 rd band is Brown, 4th band is Silver. When wiring the series -parallel circult, ahown below, using Multisim Live with a voltage probes a voltage source, Vs, with \( 20 \mathrm{~V} \) is connected botween terininals AB. What is the measured voltage value across resistor R1? 1. \( V R 1=16.764 \mathrm{~V} \) 2. \( V R 1=16.664 \mathrm{~V} \) 3. None of the above \( 4 . \mathrm{VR1}=16.364 \mathrm{~V} \) When wiring the series-paraliel circuit, shown below, using Multisim Live with a current probe, a voltage souree, Vs, with 20 V is cennected hetween terninals AB what is the messured total current value crossing resistor R1? None of the above 2. ITWRI \( =165.76 \mathrm{~mA} \) \( T T=1 R 1=16 B .36 \mathrm{~mA} \) 4. If \( =1 \mathrm{RT}=163.64 \mathrm{~mA} \)
