(Solved): Use virtual work method and determine the following unknowns on the frame shown below. Use I = 800 x ...

Use virtual work method and determine the following unknowns on the frame shown below.
Use I = 800 x 10^6 mm4 and E = 200 GPa. Show complete and organized solution. Round-off your answers

to two decimal places.
a. Vertical deflection at point C in mm.
b. Horizontal displacement of joint B in mm.
c. Slope of at D in degrees.

Variables:

a. 28.10 kN/m

b. 16.50 kN/m

c. 5.00 m

d. 6.60 m

e. 24.00 kN

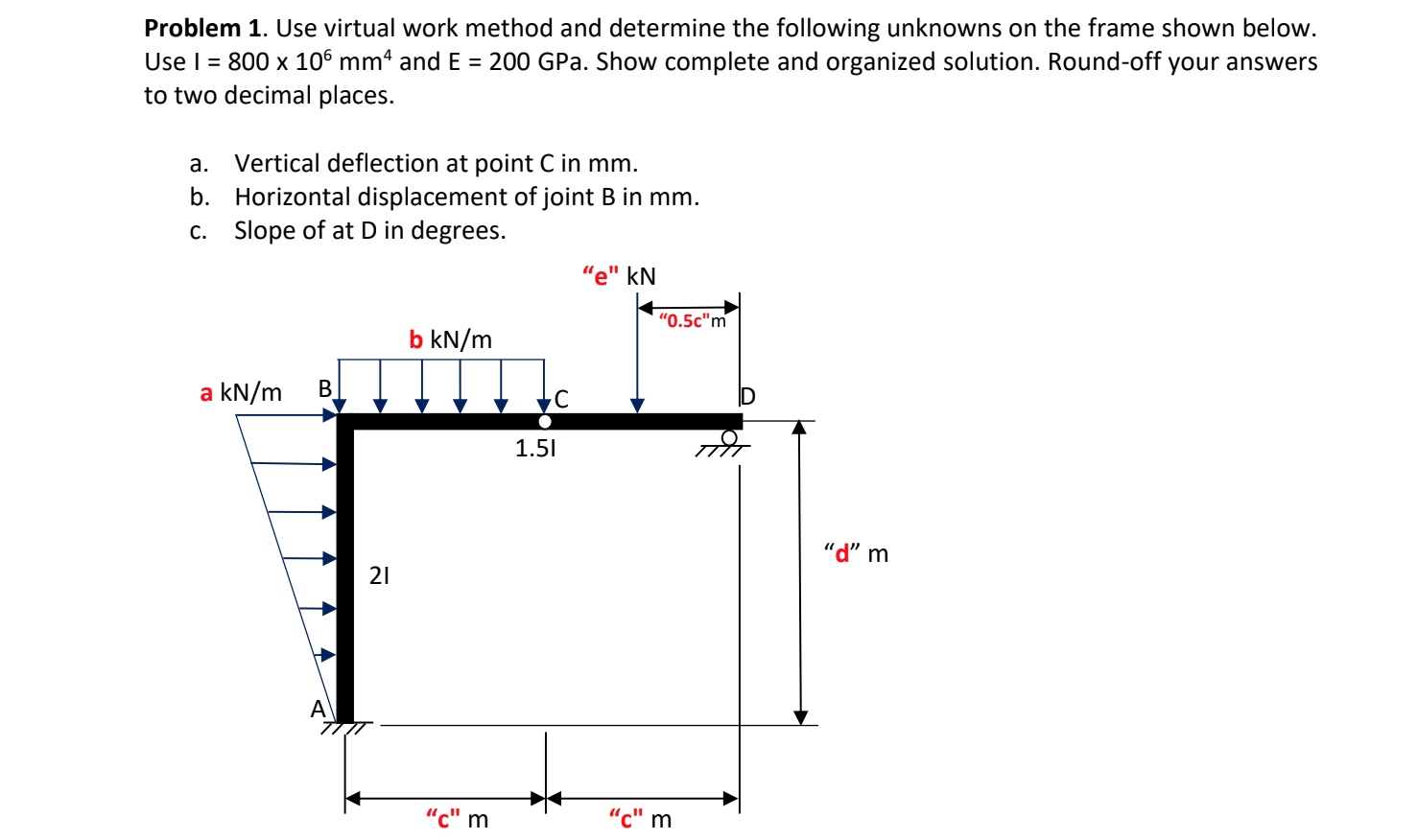

Problem 1. Use virtual work method and determine the following unknowns on the frame shown below. Use I = 800 x 106 mm4 and E = 200 GPa. Show complete and organized solution. Round-off your answers to two decimal places. a. Vertical deflection at point C in mm. b. Horizontal displacement of joint B in mm. c. Slope of at D in degrees. a kN/m B A 21 b kN/m "c" m 1.51 "e" kN "0.5c"m "c" m "d" m
