(Solved): The shaft is supported at its ends by two bearings A and B and is subjected to the forces applied t ...

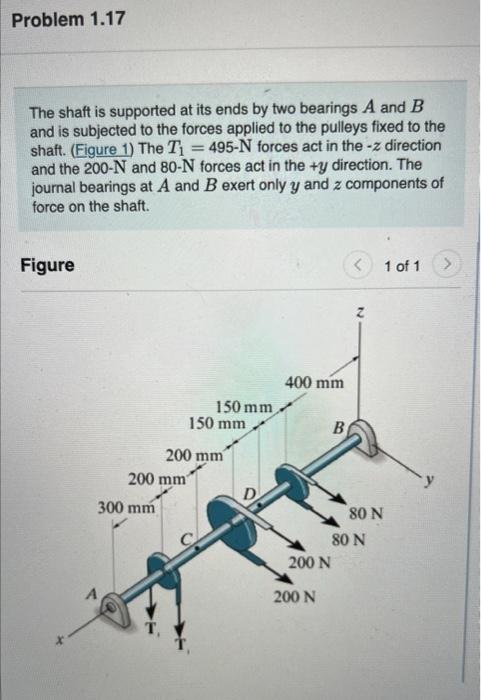

The shaft is supported at its ends by two bearings A and B and is subjected to the forces applied to the pulleys fixed to the shaft. (Figure 1) The T1?=495?N forces act in the ?z direction and the 200-N and 80-N forces act in the +y direction. The journal bearings at A and B exert only y and z components of force on the shaft.

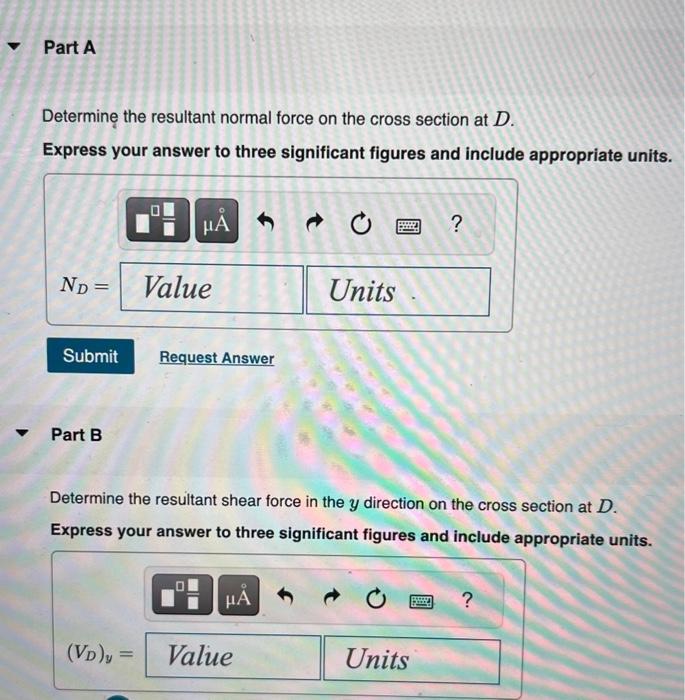

Determine the resultant normal force on the cross section at D. Express your answer to three significant figures and include appropriate units. Part B Determine the resultant shear force in the y direction on the cross section at D. Express your answer to three significant figures and include appropriate units.

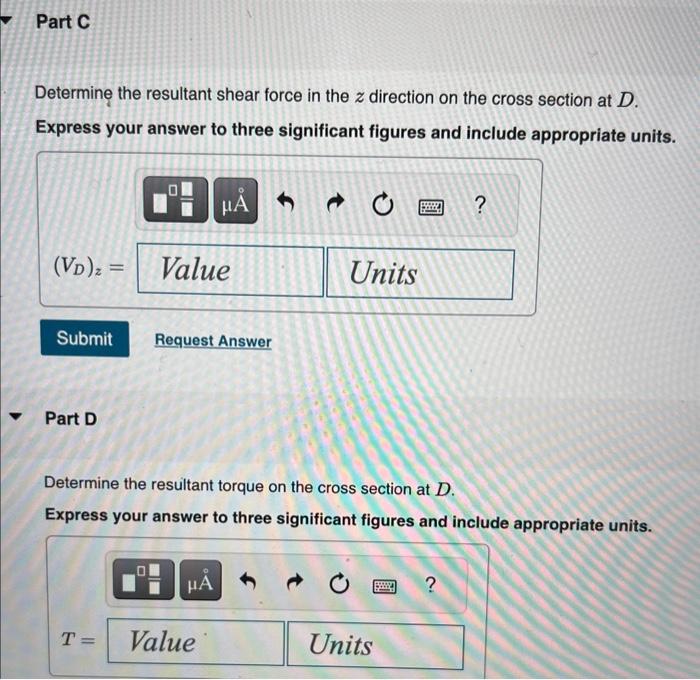

Determine the resultant shear force in the z direction on the cross section at D. Express your answer to three significant figures and include appropriate units. Part D Determine the resultant torque on the cross section at D. Express your answer to three significant figures and include appropriate units.

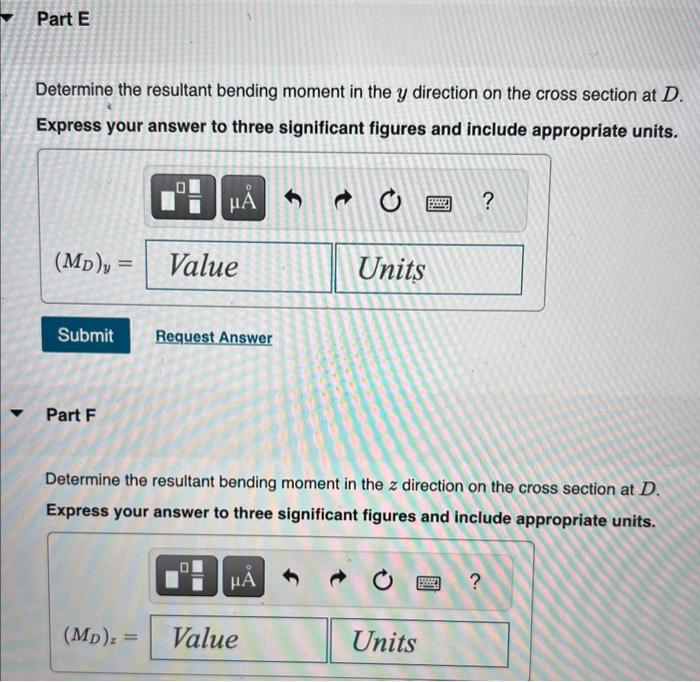

Determine the resultant bending moment in the y direction on the cross section at D. Express your answer to three significant figures and include appropriate units. Part F Determine the resultant bending moment in the z direction on the cross section at D. Express your answer to three significant figures and include appropriate units.
