(Solved): Solve for the node voltages shown in the figure. Take that the values in the diagram are \( R_{1}=4 ...
Solve for the node voltages shown in the figure. Take that the values in the diagram are \( R_{1}=4 \Omega \) and \( R_{2}=8 \Omega \). (Figure 1)

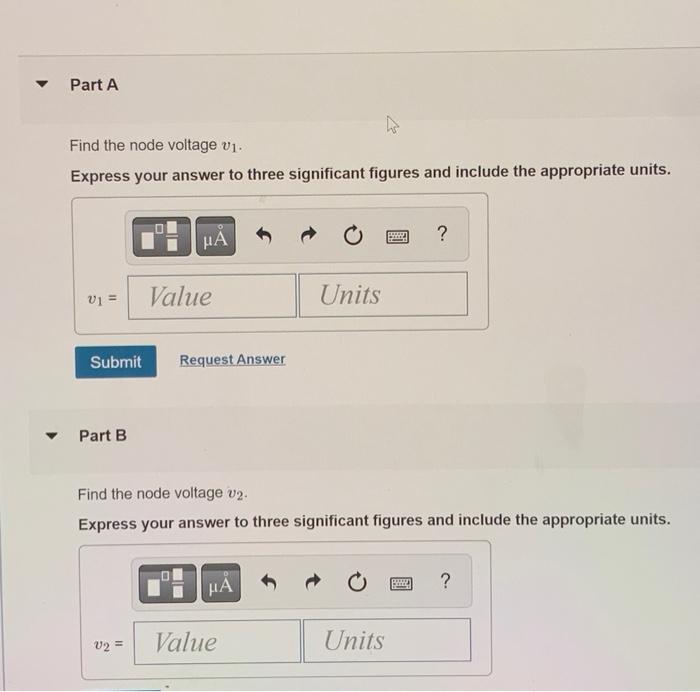

Find the node voltage \( v_{1} \). Express your answer to three significant figures and include the appropriate units. Part B Find the node voltage \( v_{2} \). Express your answer to three significant figures and include the appropriate units.
Expert Answer
Applying super nodal analysis at V1 and v2 v14+v1?v24+v28=1 and also v1-v2=10
