(Solved): Refer to the clipper circuit shown in the figure. i. Draw the output waveform ...

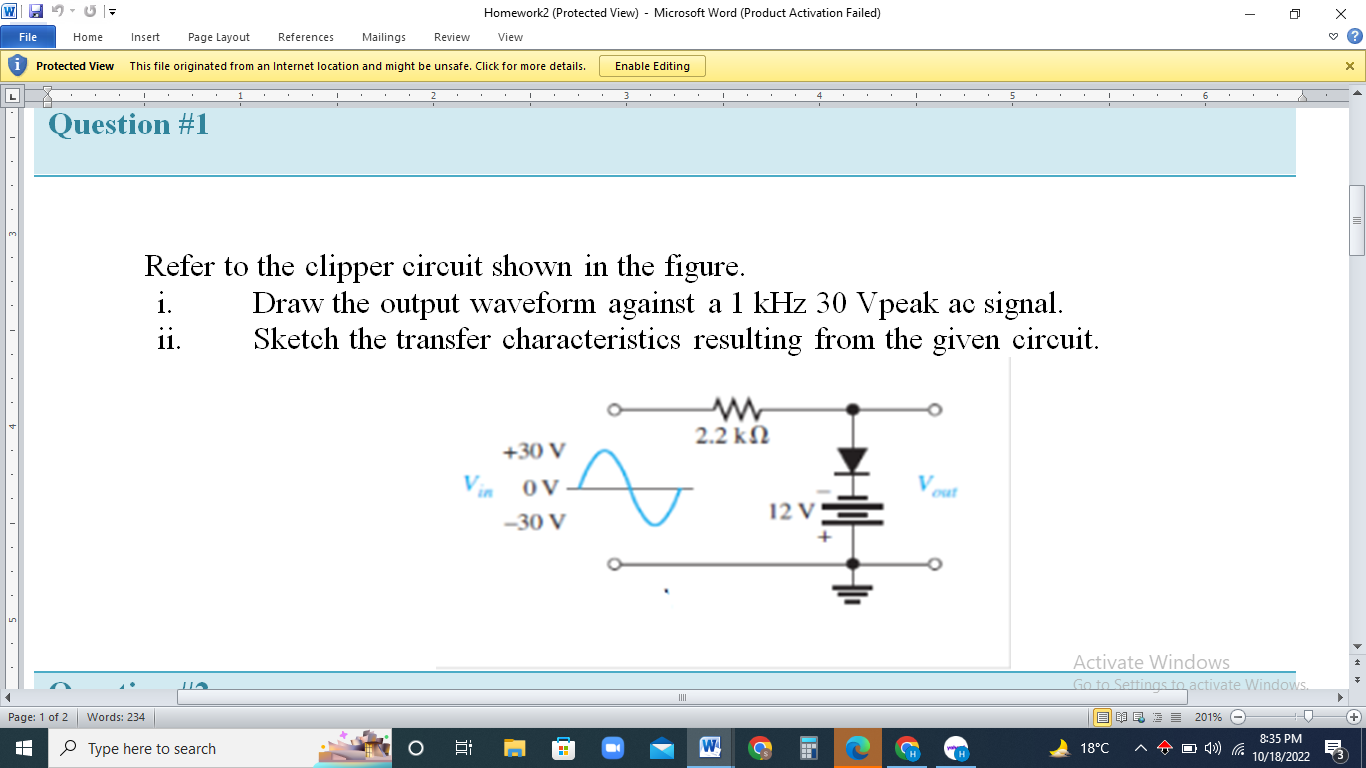

Refer to the clipper circuit shown in the figure. i. Draw the output waveform against a \( 1 \mathrm{kHz} 30 \) V peak ac signal. ii. Sketch the transfer characteristics resulting from the given circuit.
