Q2

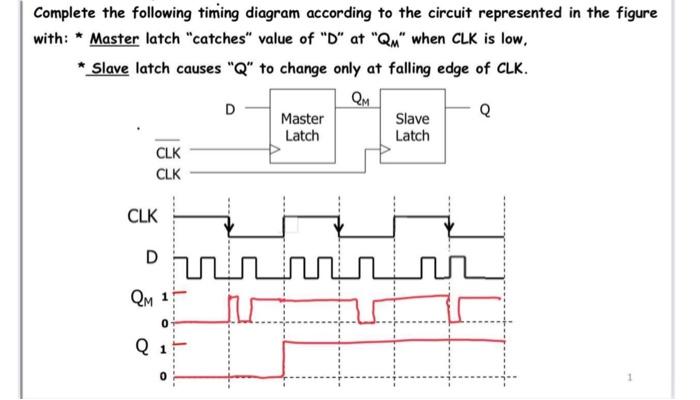

Complete the following timing diagram according to the circuit represented in the figure with: " Master latch "catches" value of "D" at "Q $Q_{M}$ " when CLK is low, * Slave latch causes "Q" to change only at falling edge of CLK.

Question

Q2

Complete the following timing diagram according to the circuit represented in the figure with: " Master latch "catches" value of "D" at "Q

Q_{M}

" when CLK is low, * Slave latch causes "Q" to change only at falling edge of CLK.

Accepted Answer

Expert Answer to - Q2 Complete the following timing diagram according to the circuit represented in the figure with: &#34;

Answer

Solution for - Q2 Complete the following timing diagram according to the circuit represented in the figure with: &#34;

Answer

This an additional answer to - Q2 Complete the following timing diagram according to the circuit represented in the figure with: &#34;

(Solved): Q2 Complete the following timing diagram according to the circuit represented in the figure with: " ...
