(Solved): Problem 8: For the kinematic diagram shown in the figure at the instant when, 0=60, the angular ...

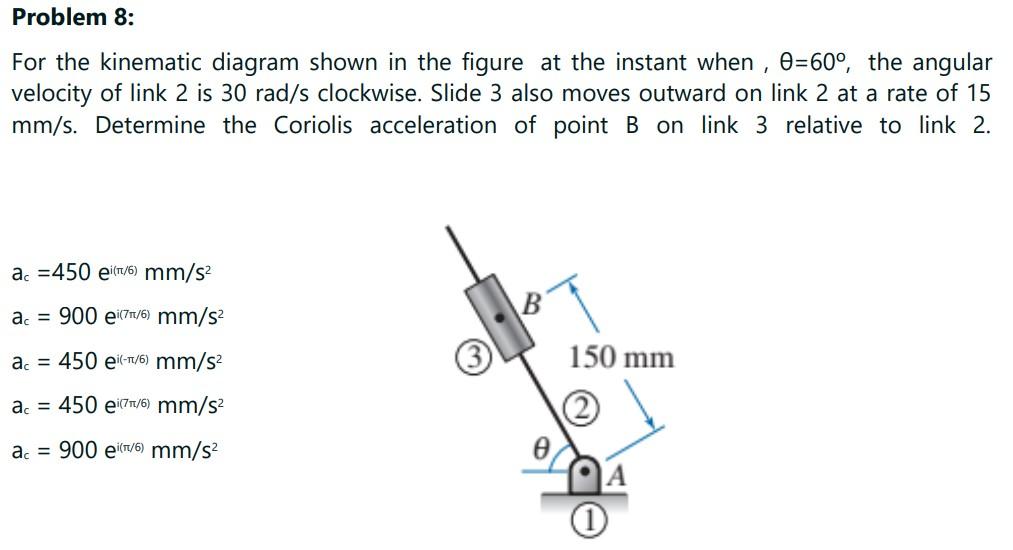

Problem 8: For the kinematic diagram shown in the figure at the instant when, 0=60°, the angular velocity of link 2 is 30 rad/s clockwise. Slide 3 also moves outward on link 2 at a rate of 15 mm/s. Determine the Coriolis acceleration of point B on link 3 relative to link 2. ac 450 ei(/6) mm/s² ac = 900 ei(7/6) mm/s² a = 450 ei(?/6) mm/s² 150 mm a = 450 ei(7/6) mm/s² ac = 900 e/6) mm/s²
