(Solved): Problem 1: Draw the shear and bending moment diagrams for the beam shown. Make sure to include all c ...

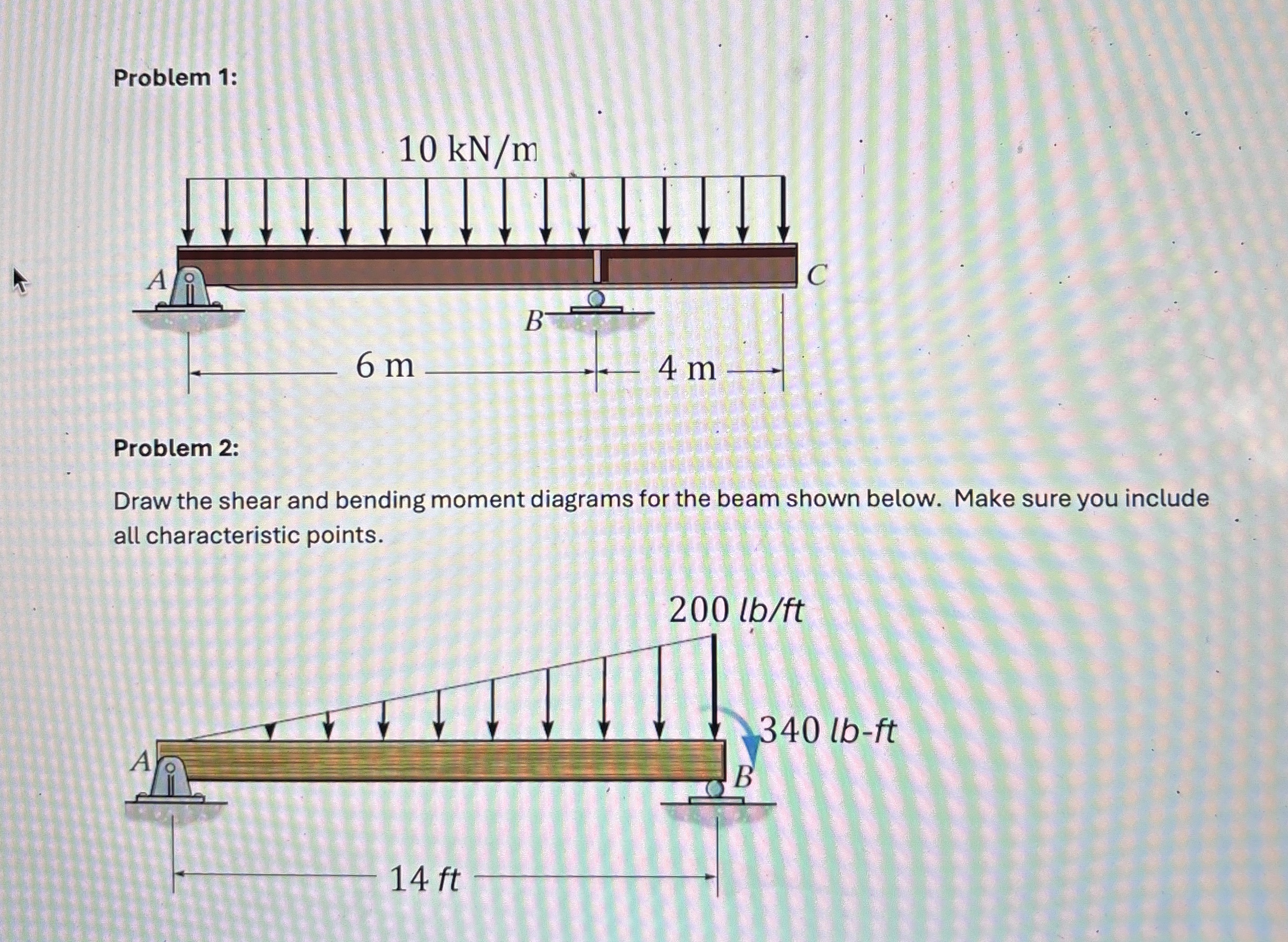

Problem 1: Draw the shear and bending moment diagrams for the beam shown. Make sure to include all characteristic points such as the maximum positive moment and the location of the inflection point needed Problem 2: Draw the shear and bending moment diagrams for the beam shown below. Make sure you include all characteristic points. The result for each problem should include the beam, the shear diagram directly under the beam, and the moment diagram directly under the shear diagram
