make truth table
if possible pls male those tables on tye computer do not write on paper

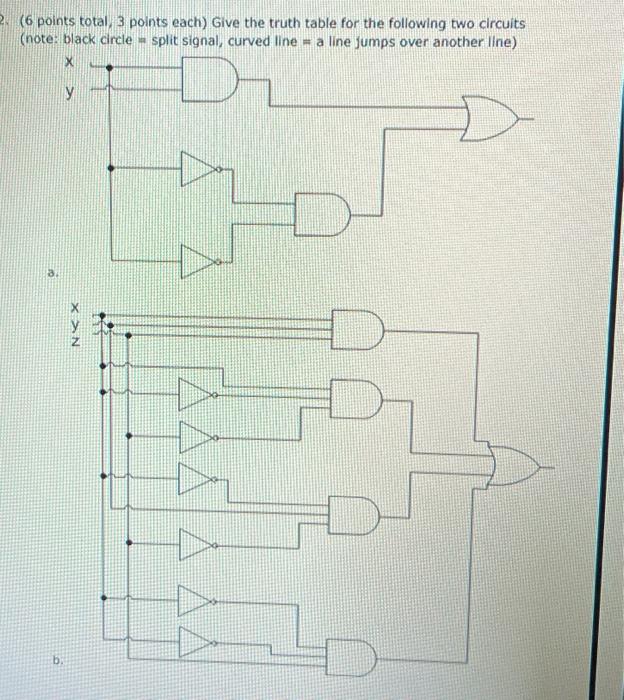

(6 points total, 3 points each) Give the truth table for the following two circuits (note: black circle = split signal, curved line \( = \) a line jumps over another line)
Expert Answer
2. a) Based on the given logic circuit diagram, we have, output signal (z) having Boolean expression = x.y + not(x).not(y) which is the inverted XOR o
