(Solved): LTSPICE: Have to design the circuit in LTSPICE (Please include a step by step on how to perform this ...



LTSPICE: Have to design the circuit in LTSPICE (Please include a step by step on how to perform this step (I am not the best with spice)

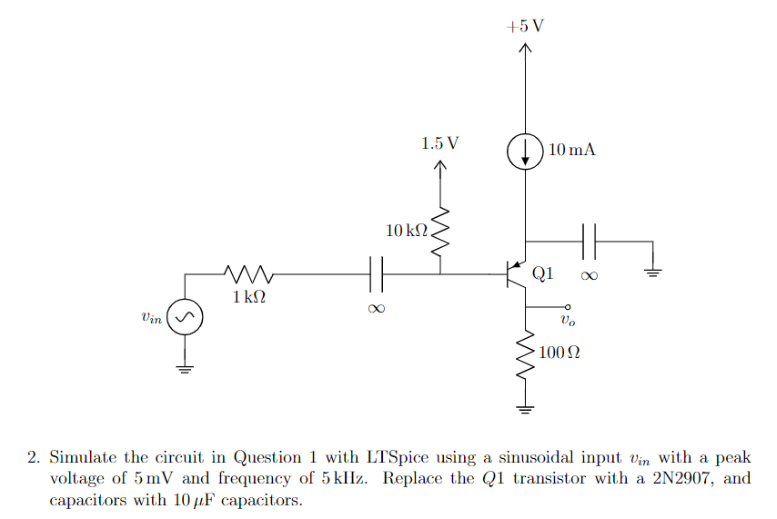

2. Simulate the circuit in Question 1 with LTSpice using a sinusoidal input \( v_{\text {in }} \) with a peak voltage of \( 5



2. Simulate the circuit in Question 1 with LTSpice using a sinusoidal input \( v_{\text {in }} \) with a peak voltage of \( 5 \mathrm{mV} \) and frequency of \( 5 \mathrm{kIIz} \). Replace the \( Q 1 \) transistor with a \( 2 \mathrm{~N} 2907 \), and capacitors with \( 10 \mu \mathrm{F} \) capacitors.
