(Solved): In the circuit below the narrow resistor is made of the same material as the ...

???????

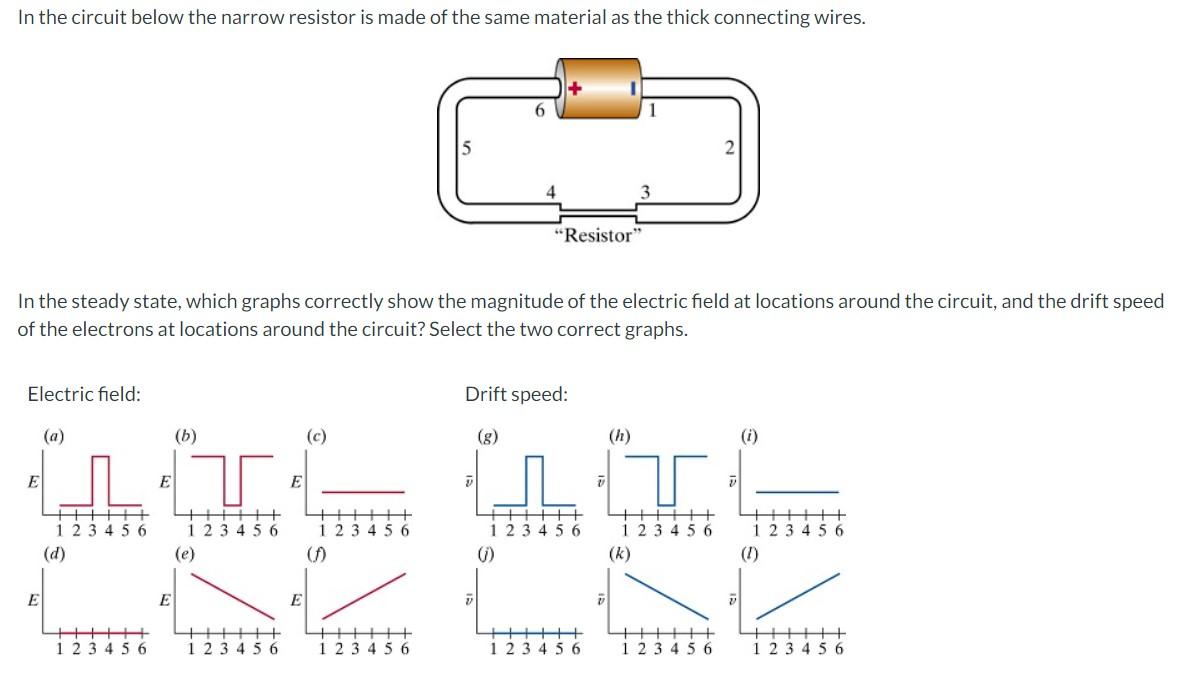

In the circuit below the narrow resistor is made of the same material as the thick connecting wires. In the steady state, which graphs correctly show the magnitude of the electric field at locations around the circuit, and the drift speed of the electrons at locations around the circuit? Select the two correct graphs. Electric field: Drift speed: (a) (b) (C) (d) (e) (f) (h) (i) (j) (k) (I)
