(Solved): How many transistors are being used in the stick diagram of figure below? assuming that: Diffusi ...

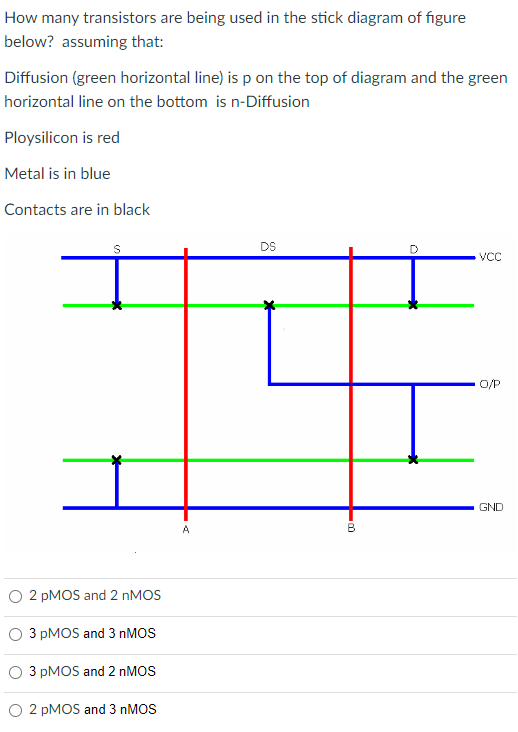

How many transistors are being used in the stick diagram of figure below? assuming that: Diffusion (green horizontal line) is \( p \) on the top of diagram and the green horizontal line on the bottom is \( \mathrm{n} \)-Diffusion Ploysilicon is red Metal is in blue Contacts are in black 2 pMOS and 2 nMOS \( 3 \mathrm{pMOS} \) and \( 3 \mathrm{nMOS} \) \( 3 \mathrm{pMOS} \) and \( 2 \mathrm{nMOS} \) \( 2 \mathrm{pMOS} \) and \( 3 \mathrm{nMOS} \) What logic gate does the diagram above implements? Nor Nand Tristate inverter Xor In CMOS technology to prevent forming of diodes we need to apply \( n \)-diffusion in contact of metal to \( n \) well.
