(Solved): H.W.: Design the combination logic circuit for BCD using the below equationsa= ~B ~D + C + B D + Ab= ...
H.W.: Design the combination logic circuit for BCD using the below equations
a= ~B ~D + C + B D + A
b= ~B + ~C ~D + C D
c= ~C + D + B
d= ~B ~D + ~B C + C ~D + B ~C D + A e= ~B ~D + C ~D
f= ~C ~D + B ~C + B ~D + A
g= ~B C + B ~C + B ~D + A

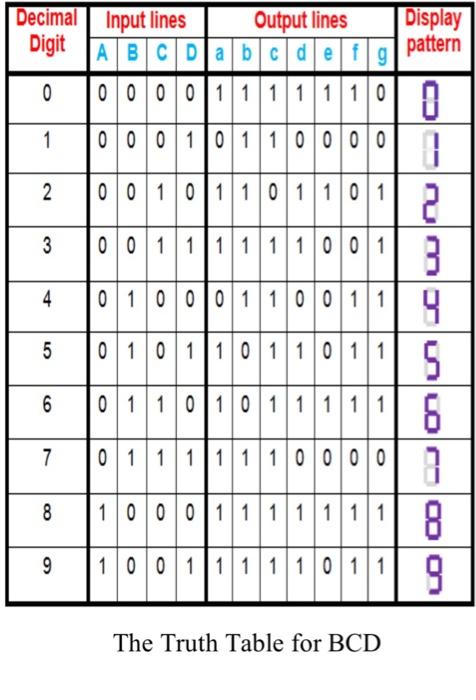

The Truth Table for BCD

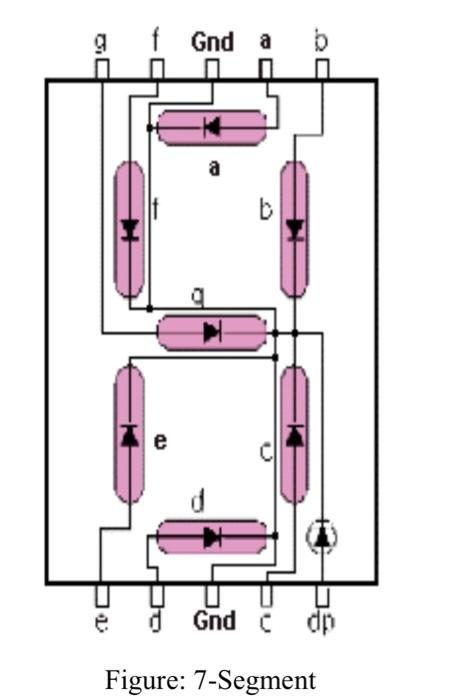

rigure: /-segment
