(Solved): From the collector characteristic curves and the dc load line in the figure below, determine the fol ...

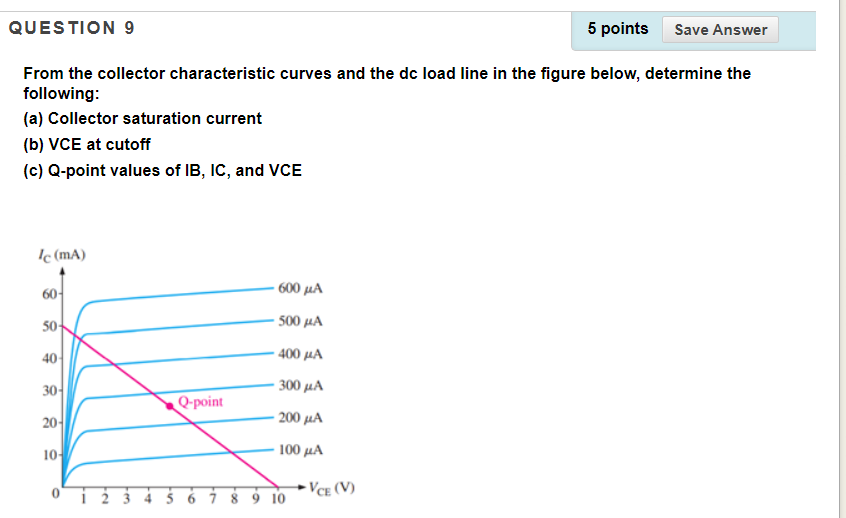

From the collector characteristic curves and the dc load line in the figure below, determine the following:
(a) Collector saturation current
(b) VCE at cutoff
(c) Q-point values of IB, IC, and VCE
Please finish as soon as possible!!
From the collector characteristic curves and the dc load line in the figure below, determine the following: (a) Collector saturation current (b) VCE at cutoff (c) Q-point values of IB, IC, and VCE
