(Solved): Determine the diameter for solid round shaft 450mm long as shown in figure below. The shaft is s ...



Determine the diameter for solid round shaft \( 450 \mathrm{~mm} \) long as shown in figure below. The shaft is supported by

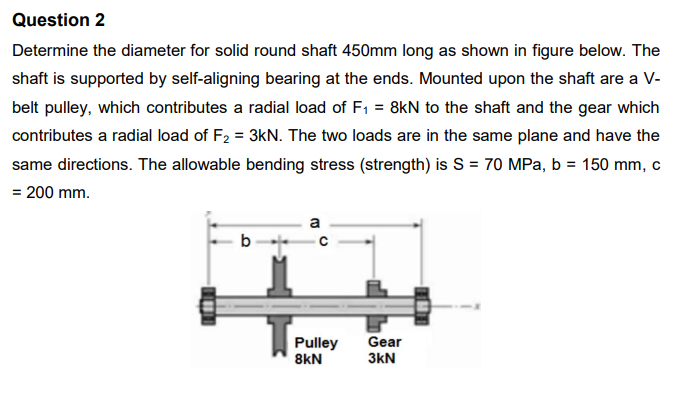

Determine the diameter for solid round shaft long as shown in figure below. The shaft is supported by self-aligning bearing at the ends. Mounted upon the shaft are a Vbelt pulley, which contributes a radial load of to the shaft and the gear which contributes a radial load of . The two loads are in the same plane and have the same directions. The allowable bending stress (strength) is .


We have an Answer from Expert

View Expert Answer

Expert Answer



Given data :




Now lets calculate the diameter of solid round shaft.

First we need to draw a Free body diagram for given figure :
