(Solved): Consider the complex DC circuit in Fig 1. The DC voltage source setting is 8 V (i.e. = 8 ...
Consider the complex DC circuit in Fig 1. The DC voltage source setting is 8 V (i.e. ???????? = 8????), and the resistor values are: ????1 = 1 ?????, ????2 = 2.2 ?????, ????3 = 820 ?, ????4 = 220 ?, ????5 = 470 ?, and ????6 = 330 ?.
Use mesh analysis to compute the mesh currents of the circuit in Fig. 1. Show your “complete step by-step” work including equations and calculations.

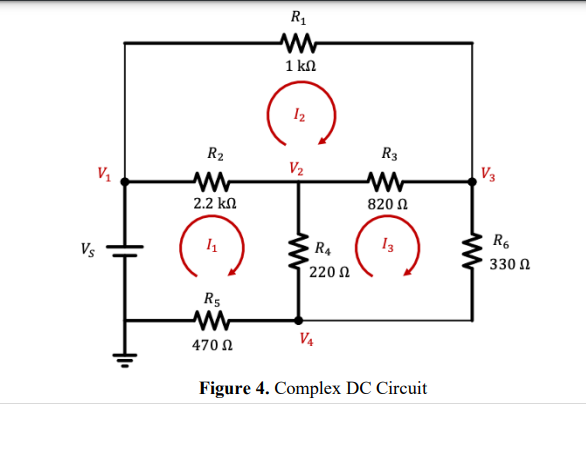

Figure 4. Complex DC Circuit
Expert Answer
Let's write the nodal equations. Consider loop 1 (top) R1*I2+R3(I2-I3)+R2(I2-I1)=0 R1*I2+R3*I2-R3*I3+R2*I2-R2*I1=0 I2(R1+R3)-I3*R3+ R2*I2 -R2*I1=0 SUBSTITU
