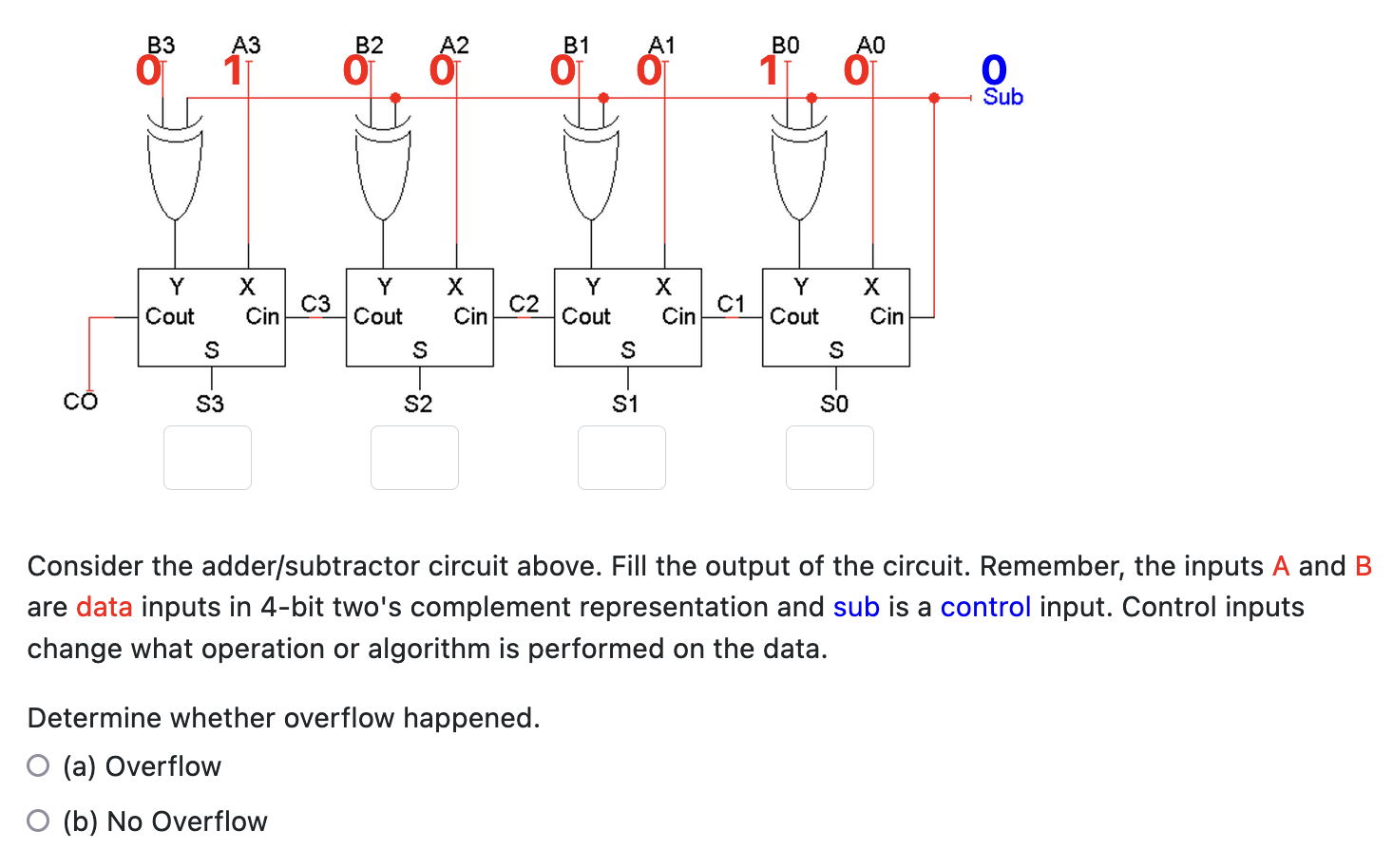

Consider the adder/subtractor circuit above. Fill the output of the circuit. Remember, the inputs A and B are data inputs in 4-bit two's complement representation and sub is a control input. Control inputs change what operation or algorithm is performed on the data. Determine whether overflow happened. (a) Overflow (b) No Overflow

Question

Accepted Answer

Expert Answer to -  Consider the adder/subtractor circuit above. Fill the output of the circuit. Remember, the inputs A

Answer

Solution for -  Consider the adder/subtractor circuit above. Fill the output of the circuit. Remember, the inputs A

Answer

This an additional answer to -  Consider the adder/subtractor circuit above. Fill the output of the circuit. Remember, the inputs A
