(Solved): Chemical Engineering Reference book: Plant Design and Economics for Chemical Engineers By: Max S. ...

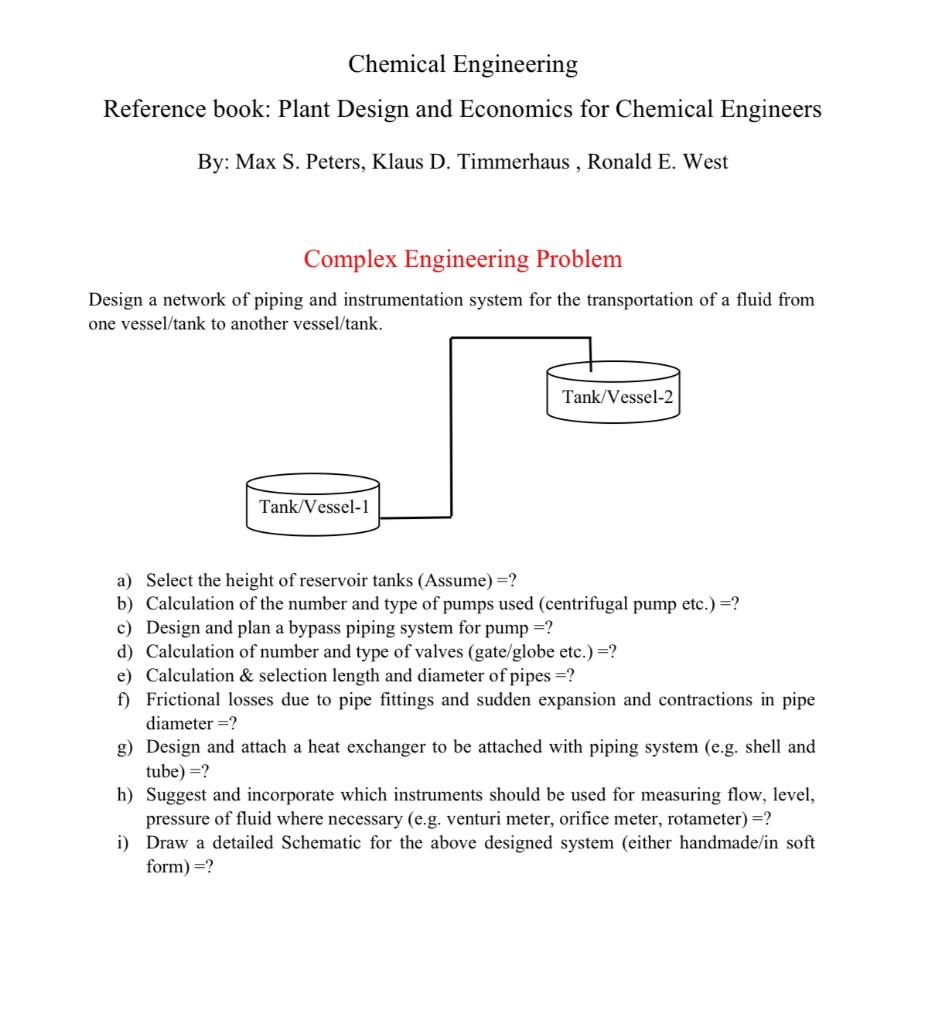

Chemical Engineering Reference book: Plant Design and Economics for Chemical Engineers By: Max S. Peters, Klaus D. Timmerhaus, Ronald E. West Complex Engineering Problem Design a network of piping and instrumentation system for the transportation of a fluid from one vessel/tank to another vessel/tank. a) Select the height of reservoir tanks (Assume) =? b) Calculation of the number and type of pumps used (centrifugal pump etc.) =? c) Design and plan a bypass piping system for pump =? d) Calculation of number and type of valves (gate/globe etc.) =? e) Calculation \& selection length and diameter of pipes =? f) Frictional losses due to pipe fittings and sudden expansion and contractions in pipe diameter \( = \) ? g) Design and attach a heat exchanger to be attached with piping system (e.g. shell and tube) \( = \) ? h) Suggest and incorporate which instruments should be used for measuring flow, level, pressure of fluid where necessary (e.g. venturi meter, orifice meter, rotameter) \( = \) ? i) Draw a detailed Schematic for the above designed system (either handmade/in soft form ) \( = \) ?
