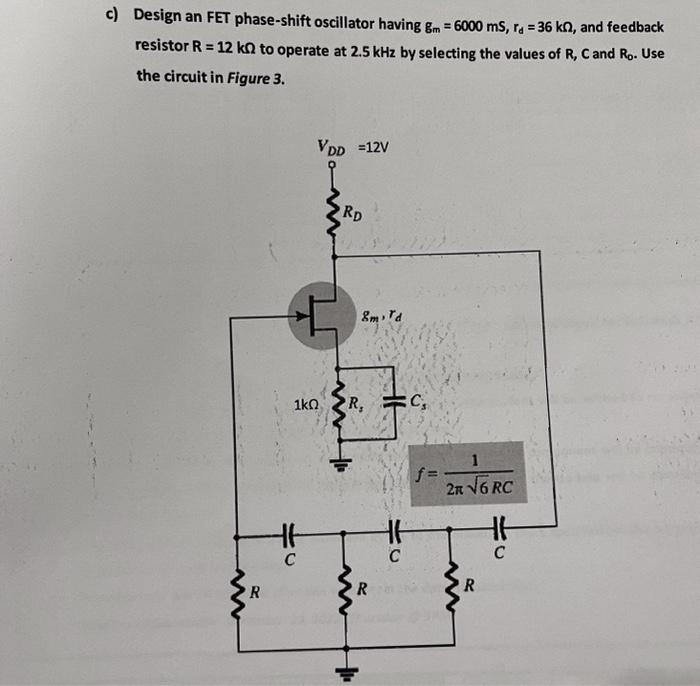

c) Design an FET phase-shift oscillator having ( mathrm{gm}_{ mathrm{m}}=6000 mathrm{mS}, mathrm{r}_{ mathrm{d}}=36 mathrm{k} ), and feedback resistor ( R=12 mathrm{k} Omega ) to operate at ( 2.5 mathrm{kHz} ) by selecting the values of ( R, C ) and ( R_{0} ). Use the circuit in Figure 3.

Question

c) Design an FET phase-shift oscillator having  (  mathrm{gm}_{ mathrm{m}}=6000  mathrm{mS},  mathrm{r}_{ mathrm{d}}=36  mathrm{k}  ), and feedback resistor  ( R=12  mathrm{k}  Omega  ) to operate at  ( 2.5  mathrm{kHz}  ) by selecting the values of  ( R, C  ) and  ( R_{0}  ). Use the circuit in Figure 3.
