(Solved): Box column connected with I-shaped beam by blind bolts (web) and fillet welds (flange). Design load ...

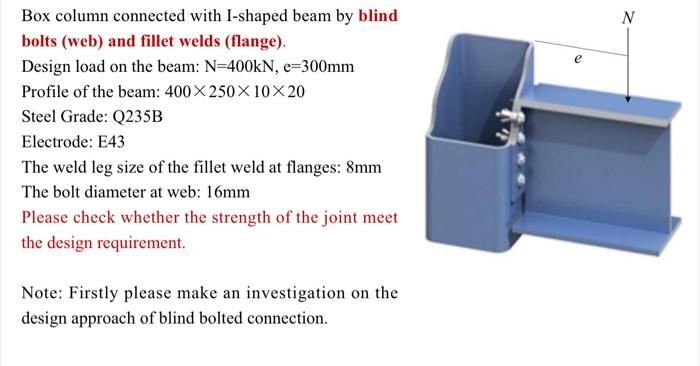

Box column connected with I-shaped beam by blind bolts (web) and fillet welds (flange). Design load on the beam: \( \mathrm{N}=400 \mathrm{kN}, \mathrm{e}=300 \mathrm{~mm} \) Profile of the beam: \( 400 \times 250 \times 10 \times 20 \) Steel Grade: Q235B Electrode: E43 The weld leg size of the fillet weld at flanges: \( 8 \mathrm{~mm} \) The bolt diameter at web: \( 16 \mathrm{~mm} \) Please check whether the strength of the joint meet the design requirement. Note: Firstly please make an investigation on the design approach of blind bolted connection.
