Any circuit simulator would do (LTSpice, Simulink, etc)

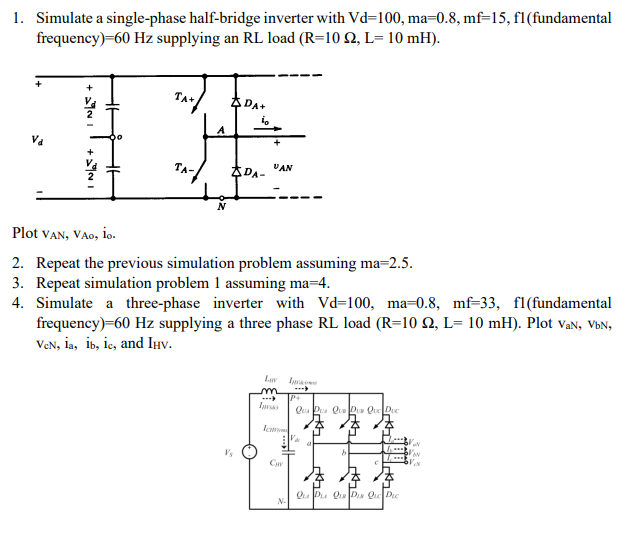

1. Simulate a single-phase half-bridge inverter with $$\mathrm{Vd}=100,\mathrm{ma}=0.8,\mathrm{mf}=15,\mathrm{f}$$ (fundamental frequency $$)=60\mathrm{Hz}$$ supplying an $$\mathrm{RL}$$ load $$(\mathrm{R}=10?,\mathrm{L}=10\mathrm{mH})$$. Plot $${\mathrm{V}}_{\mathrm{AN}},{\mathrm{V}}_{\mathrm{Ao}},{\mathrm{i}}_{\mathrm{o}}$$. 2. Repeat the previous simulation problem assuming $$ma=2.5$$. 3. Repeat simulation problem 1 assuming $$ma=4$$. 4. Simulate a three-phase inverter with $$\mathrm{Vd}=100,\mathrm{ma}=0.8,\mathrm{mf}=33,\mathrm{fl}$$ (fundamental frequency) $$=60\mathrm{Hz}$$ supplying a three phase $$\mathrm{RL}$$ load $$(\mathrm{R}=10?,\mathrm{L}=10\mathrm{mH})$$. Plot $${\mathrm{V}}_{\mathrm{aN}},{\mathrm{v}}_{\mathrm{bN}}$$, $${\mathrm{v}}_{\mathrm{cN}},{\mathrm{i}}_{\mathrm{a}},{\mathrm{i}}_{\mathrm{b}},{\mathrm{i}}_{\mathrm{c}}$$, and $${\mathrm{I}}_{\mathrm{HV}}$$.
