(Solved): Answer these questions Based off: 1. Provide a phasor diagram for the capacitor, inductor, and resis ...

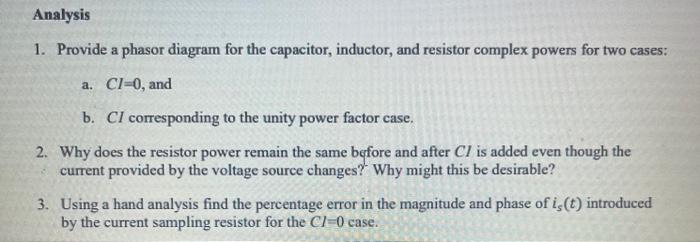

1. Provide a phasor diagram for the capacitor, inductor, and resistor complex powers for two cases: a. $Cl=0$, and b. $CI$ corresponding to the unity power factor case. 2. Why does the resistor power remain the same bffore and after $\mathrm{Cl}$ is added even though the current provided by the voltage source changes? Why might this be desirable? 3. Using a hand analysis find the percentage error in the magnitude and phase of $i_s(t)$ introduced by the current sampling resistor for the $\mathrm{Cl}=0$ case.
