A stepped shaft ABCD ( ( G=80 ) GPa) consisting of solid circular segments is subjected to three torques ( T_{1}=3.1 mathrm{kNm} ), ( mathrm{T}_{2}=2.3 mathrm{kNm} ), and ( mathrm{T}_{3}= mathrm{T} ). Determine ( mathrm{T} ), which acts at point ( D ) (see figure) if the angle of twist at point ( mathrm{D}

Question

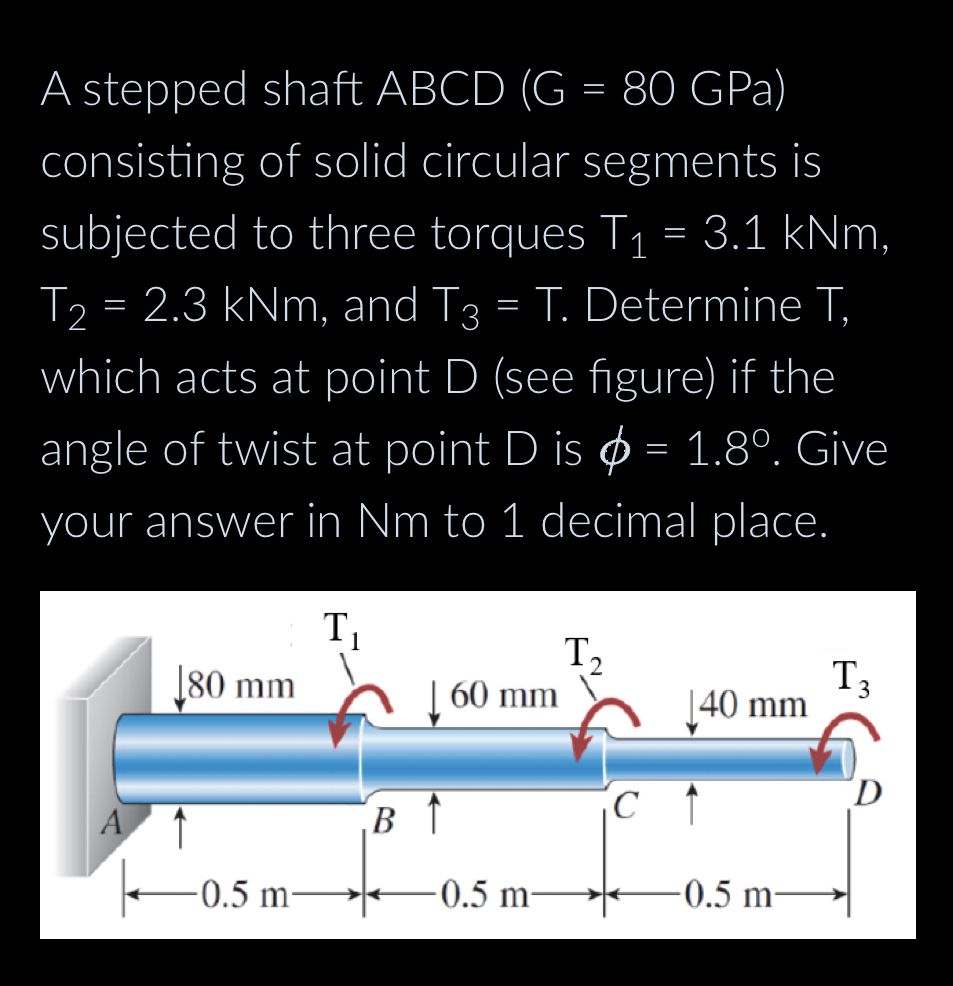

A stepped shaft ABCD (   ( G=80   ) GPa) consisting of solid circular segments is subjected to three torques   ( T_{1}=3.1   mathrm{kNm}   ),   (   mathrm{T}_{2}=2.3   mathrm{kNm}   ), and   (   mathrm{T}_{3}=  mathrm{T}   ). Determine   (   mathrm{T}   ), which acts at point   ( D   ) (see figure) if the angle of twist at point   (   mathrm{D}   ) is   (   phi=1.8^{  circ}   ). Give your answer in   (   mathrm{Nm}   ) to 1 decimal place.

Accepted Answer

Expert Answer to -  A stepped shaft ABCD (   ( G=80   ) GPa) consisting of solid circular segments is subjected to thre

Answer

Solution for -  A stepped shaft ABCD (   ( G=80   ) GPa) consisting of solid circular segments is subjected to thre

Answer

This an additional answer to -  A stepped shaft ABCD (   ( G=80   ) GPa) consisting of solid circular segments is subjected to thre
