(Solved): A beam has the section shown, where d=215mm,b=70mm,t= 35.0mm, and w=17.0mm. The two boards ...

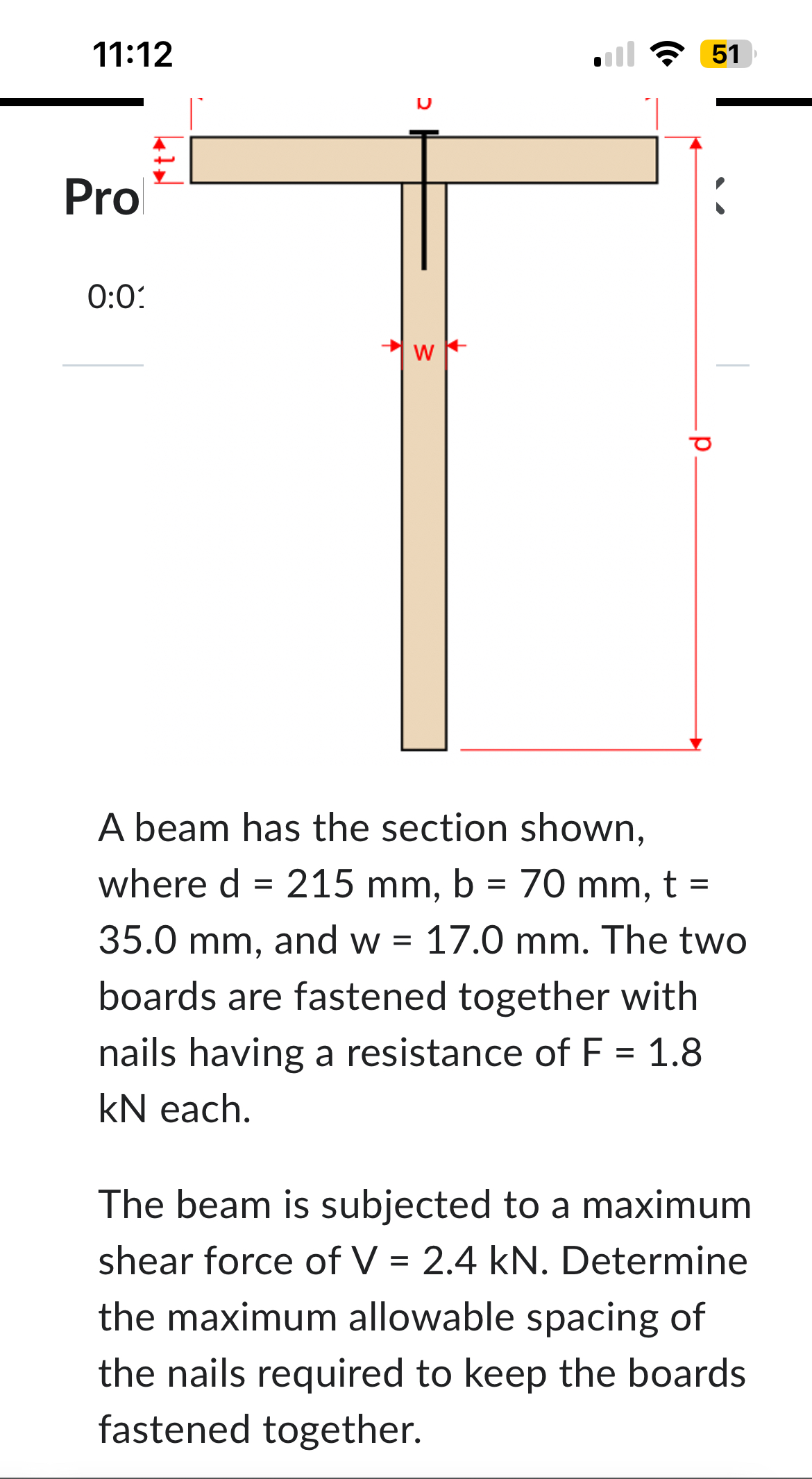

A beam has the section shown, where d=215mm,b=70mm,t=35.0mm, and w=17.0mm. The two boards are fastened together with nails having a resistance of F=1.8 kN each. The beam is subjected to a maximum shear force of V=2.4kN. Determine the maximum allowable spacing of the nails required to keep the boards fastened together.
