(Solved): 2) The cantilevered bar in the figure is made from a AISI 4140 (quenched and tempered at 1200F ...

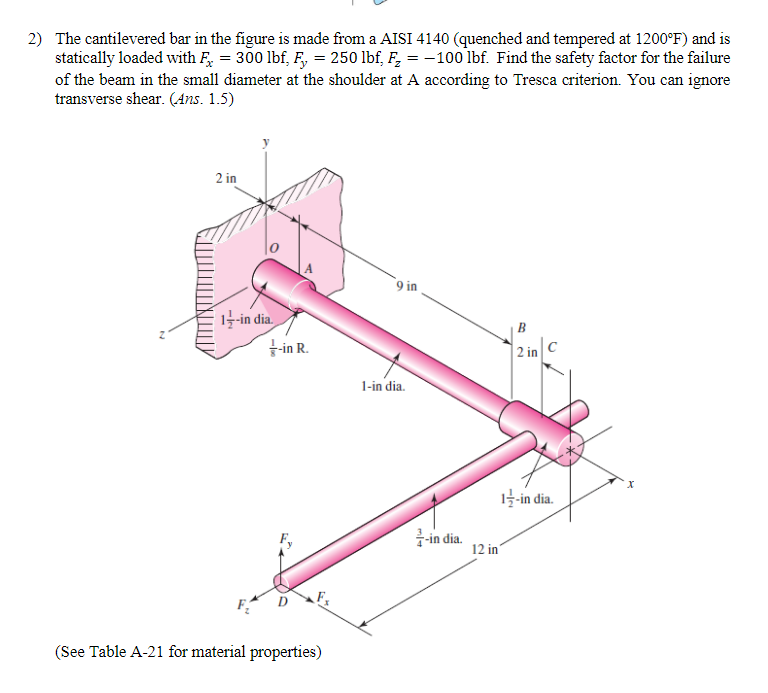

2) The cantilevered bar in the figure is made from a AISI 4140 (quenched and tempered at ) and is statically loaded with . Find the safety factor for the failure of the beam in the small diameter at the shoulder at A according to Tresca criterion. You can ignore transverse shear. (Ans. 1.5) (See Tab:
Expert Answer
Given DataCantilever bar made from AISI 4140Load Fx=300 lbfLoad Fy=250 lbfLoad Fz=?100 lbfnow we have to calculate the safety factor for thr failure o
