(Solved): 2. For the transistor circuit shown in figure 2 , compute a, b, c: a. \( \mathbf{V}_{\mathbf{C E}} ...

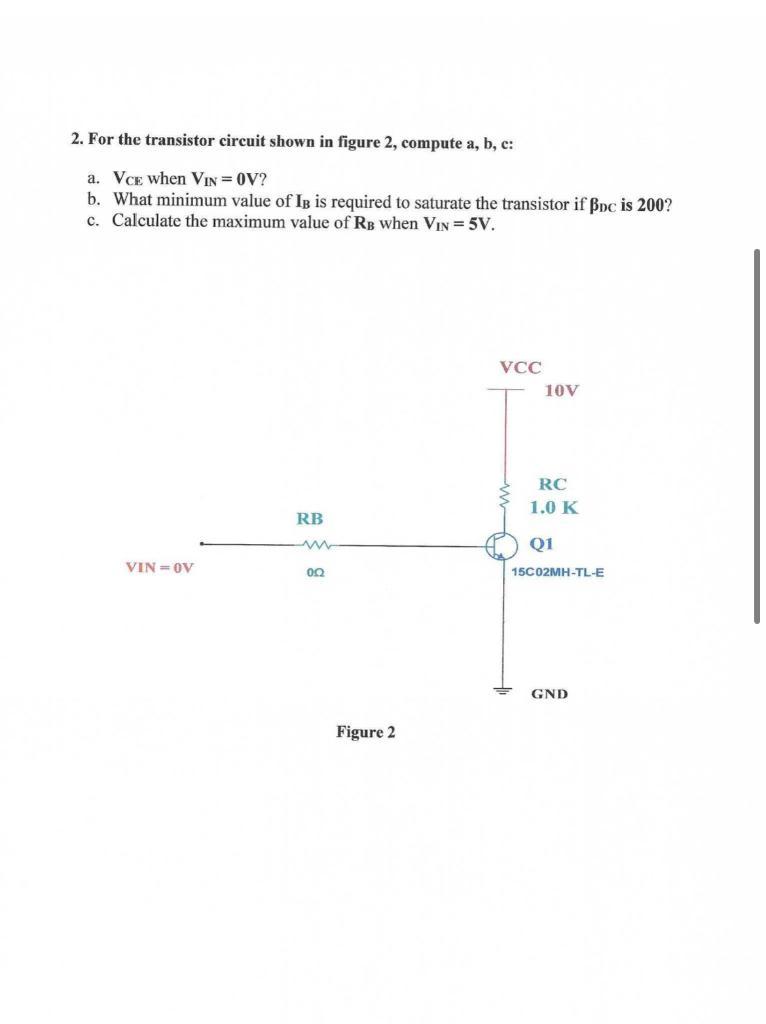

2. For the transistor circuit shown in figure 2 , compute a, b, c: a. \( \mathbf{V}_{\mathbf{C E}} \) when \( \mathbf{V}_{\mathbf{I N}}=\mathbf{0} \mathbf{V} \) ? b. What minimum value of \( I_{B} \) is required to saturate the transistor if \( \boldsymbol{\beta}_{\mathrm{DC}} \) is \( \mathbf{2 0 0} \) ? c. Calculate the maximum value of \( \mathbf{R}_{B} \) when \( \mathbf{V}_{I N}=\mathbf{5 V} \). N 1gurv \( \angle \)
